| Model | HP | Hitch | Working width | Overall width | Weight lbs | Ship
lbs |
# of shanks | # of roller spikes | Shank spacing | Shank penetration | Spring pressure lbs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BPL-048 | 25-50 | Cat. 1 | 48″ | 52″ | 496 | 544 | 17 | 70 | 2 13/16″ | 4 1/2″ | 160 ea. |
| BPL-060 | 25-50 | Cat. 1 | 60″ | 64″ | 652 | 702 | 21 | 88 | 2 13/16″ | 4 1/2″ | 160 ea. |
| BPL-072 | 25-50 | Cat. 1 | 72″ | 76″ | 679 | 729 | 25 | 106 | 2 13/16″ | 4 1/2″ | 160 ea. |
Heavy duty formed plate “A” frame
Our fully welded and formed heavy duty “A” frames resist the toughest working conditions.

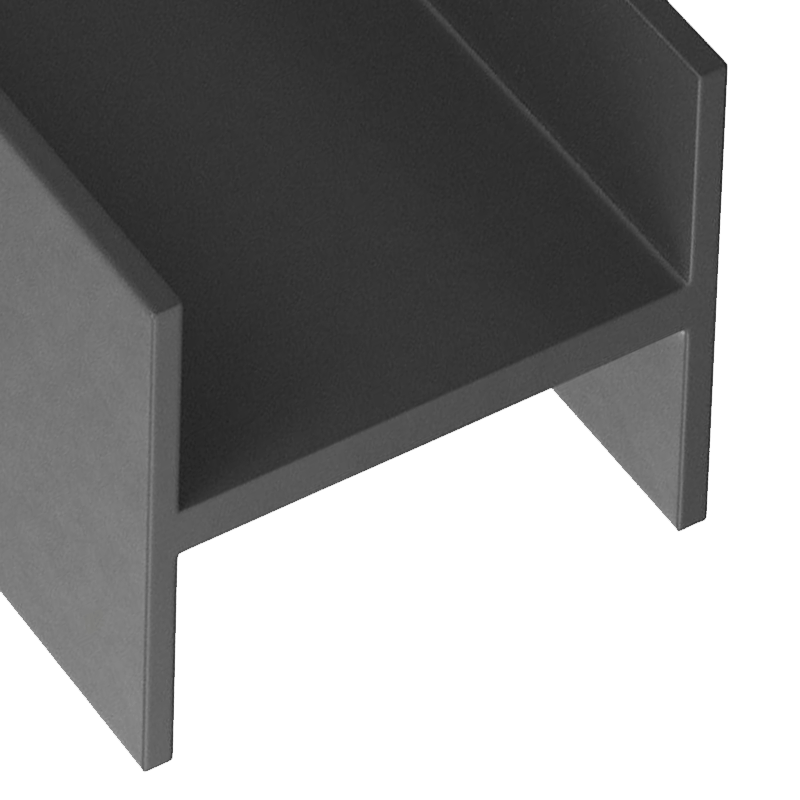

Massive 10″ I beam frame construction
Even our Standard duty soil pulverizers are heavier built then most of the competitors Heavy duty units. Standard duty pulverizers utilize a 10″ (49.1 lbs/ft) frame I beam as the main frame structure.

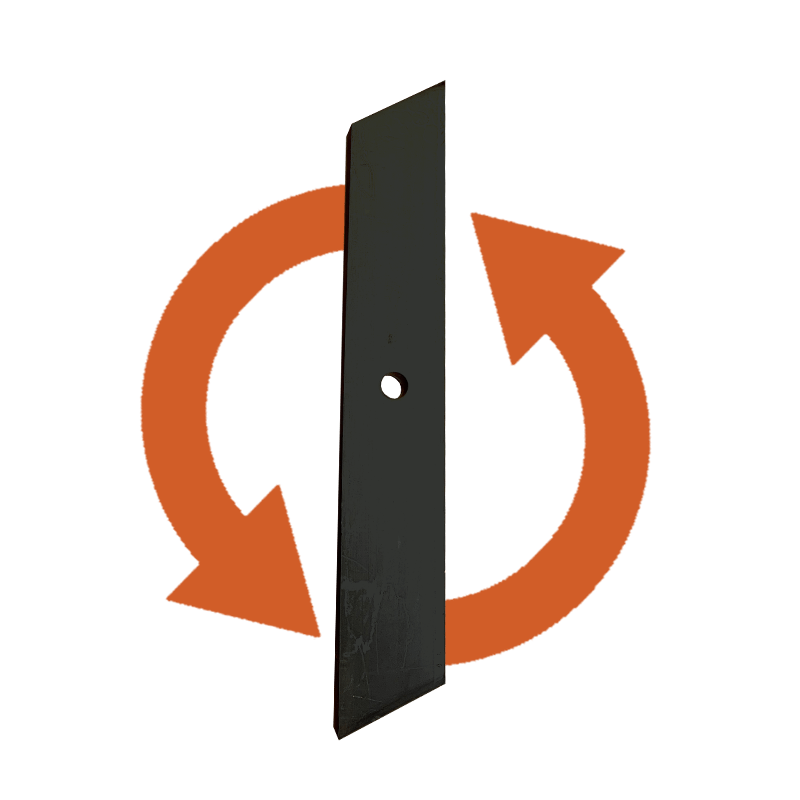

Reversible shanks
Heat treated 1/2″x2″ shanks are heavier duty than the spikes often used by the competition and are reversible giving you twice the use out of them.
Heat treated spikes
3/8″ steel spikes fully welded in a timed scroll pattern on a heavy walled roller.
Self aligning roller bearings
Greasable self angling 1″ roller bearings allow the rear roller to spin freely over the ground.
ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.
